a riba chartered architectural practice specialising in residential architecture


studio heathfield limited

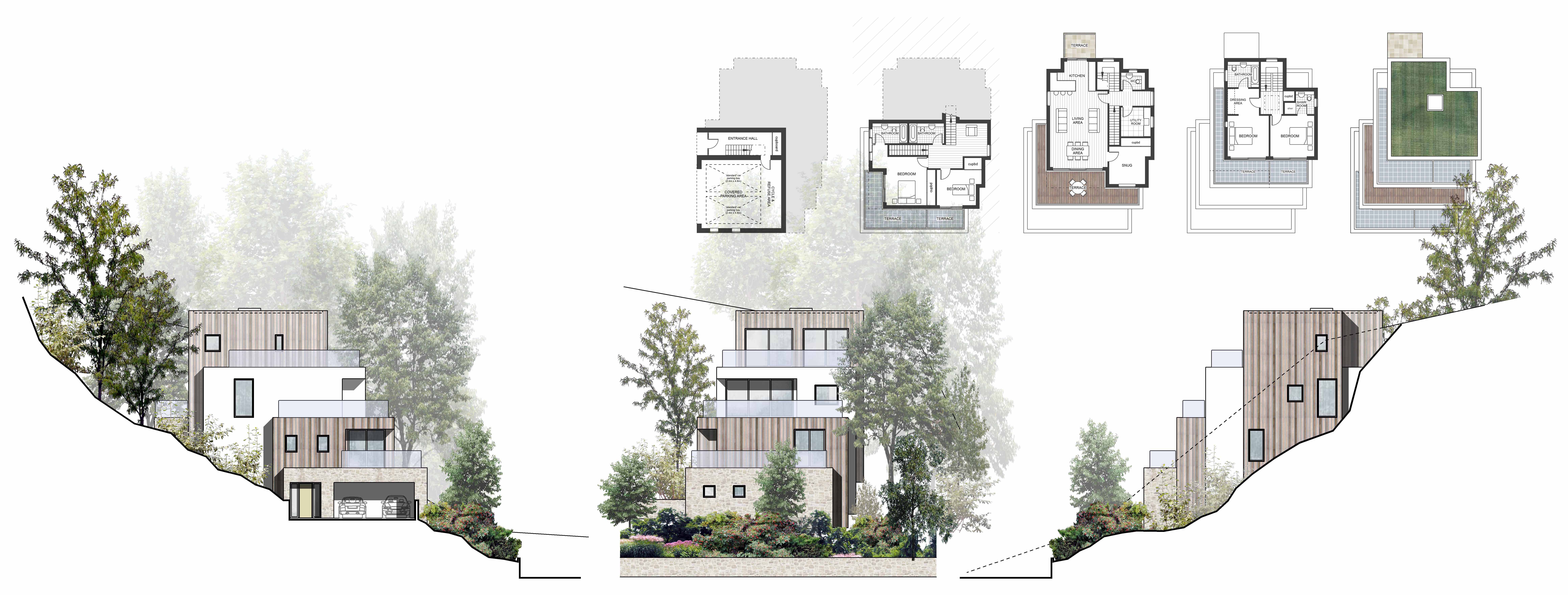

planning permission is currently being sought for 6 contemporary detached houses that are set into and arranged around a steeply sloping site.  entry into the dwellings is at the lower level with each house set over 4 floors.  the upper floors contain the main living spaces and these are orientated so that they benefit from expansive views outwards beyond the site

ENTRY LEVEL

LOWER SLEEPING LEVEL

LIVING LEVEL

UPPER SLEEPING LEVEL

ROOF LEVEL

1

2

3


4

5


6

7


8
